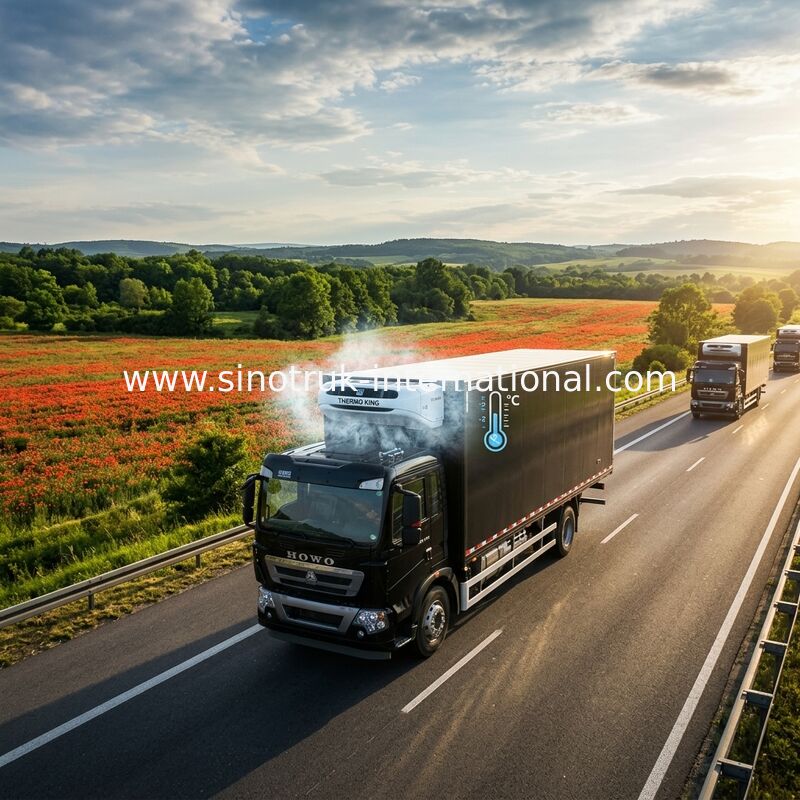

Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4

Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4

  • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
  • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
  • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
  • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: SINOTRUK
إصدار الشهادات: ISO/3C/BV/IFA/SGS
Model Number: ZZ1167H501GD1
شروط الدفع والشحن:
Minimum Order Quantity: 1 Unit
الأسعار: USD26000-USD26500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
اتصل
مفصلة وصف المنتج
Product Name: refrigerated food truck Model: ZZ1167H501GD1
Drive type: LHD 4X2 Emission Standard: Euro 4
Engine: German Man engine MC07.21-40, 210HP Loading capacity: 16Tons
تسليط الضوء:

refrigerated box truck,refrigerated food truck

,

refrigerated food truck

Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4



Description:



Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4

Our company's production of circular easy brand refrigerator car introduced Italy,

Germany, the United States overall polyester foam technology, and high strength fiber

plastic and other material manufacturing technology and equipment


Refrigerated truck is one kind of closed van truck which is used to transport the frozen

or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

insulation van and it is refrigeration special use transport truck, usually used for

transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc.



Refrigerated trucks by special automobile chassis walking part, and the insulation body (usually made of polyurethane materials, glass steel, color steel plate, stainless steel, etc.) inside the refrigeration unit, temperature recorder and other components, special requirements for vehicles, such as car meat hook, hook can be mounted to the flesh, waist, Aluminum Alloy rail, ventilation slots and other options.



Specification:



Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4

Chassis Model

ZZ1167H501GD1

Drive Type

4×2

Engine

MC07.21-40, 210HP, Euro4

Cabin

T5G-M lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

DC6J70TC(6 forwards & 1 reverses)

Front Axle

1090

Driving Axle

1118

Clutch

hydraulically operating with air assistance

Rim/ Tire

10.00R20

Wheel base

4400(mm)

Van board material

polymer composites

Dimension of cargo body

6200*2300*2000mm, Bottom:3mm Side:1.5mm

Refrigerator

XL-300,  -18C0

Overall dimension

7128×2462×3375mm

The curb weight

8500(Kg)

Gross weight

16000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



Competitive Advantage:

1)Sealed container to ensure the sealing of refrigerated trucks to reduce the heat exchange with the outside world strictly, to ensure that the refrigerator to maintain the low temperature refrigeration equipment and refrigeration container. To install the connectivity and provide Everfount refrigeration, ensure containers within the allowable temperature in the range of goods.

2) so that our company refrigeration, heat preservation technology level basic reached

world advanced water level.

3) Refrigeration, heat preservation car body with light, high strength, good heat

insulation performance,  high temperature stability, no pollution, oxidation, easy

maintenance, but also has low noise, low energy consumption, low failure rate, food

preservation effect is good and so on a series of advantages
4) A lot of technical indicators and the world's advanced level is close to the fully

closed polyurethane  plate bonded glass steel structure, this product is light weight,

low heat leakage.

5) The "sandwich" structure (low thermal conductivity), good thermal

insulation effect. Using unsaturated  polyester resin as binder, plus a cushion, with

rigid polyurethane foam insulation, heat conduction low  coefficient, high strength. High

strength plate bonding, high sealing glue, forming a whole. The structure of the

refrigerator car is dominant in the domestic market, our company is using the technology

of  refrigerated trucks.
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high

quality and more reliable
9) competitive price, cost-effective

10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arange production according to your needs exactly and quickly

12) professional import and export dealing precedure, make customs clearance more high efficiency



Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4 0Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4 1
