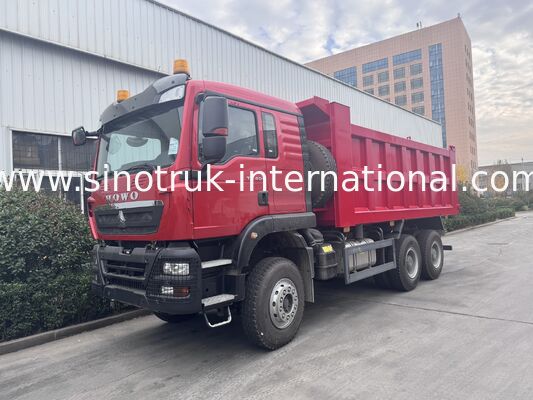

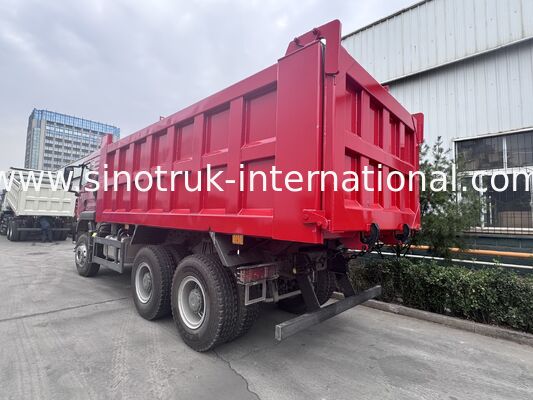

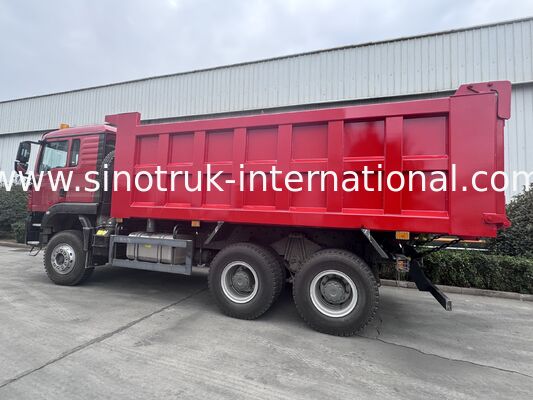

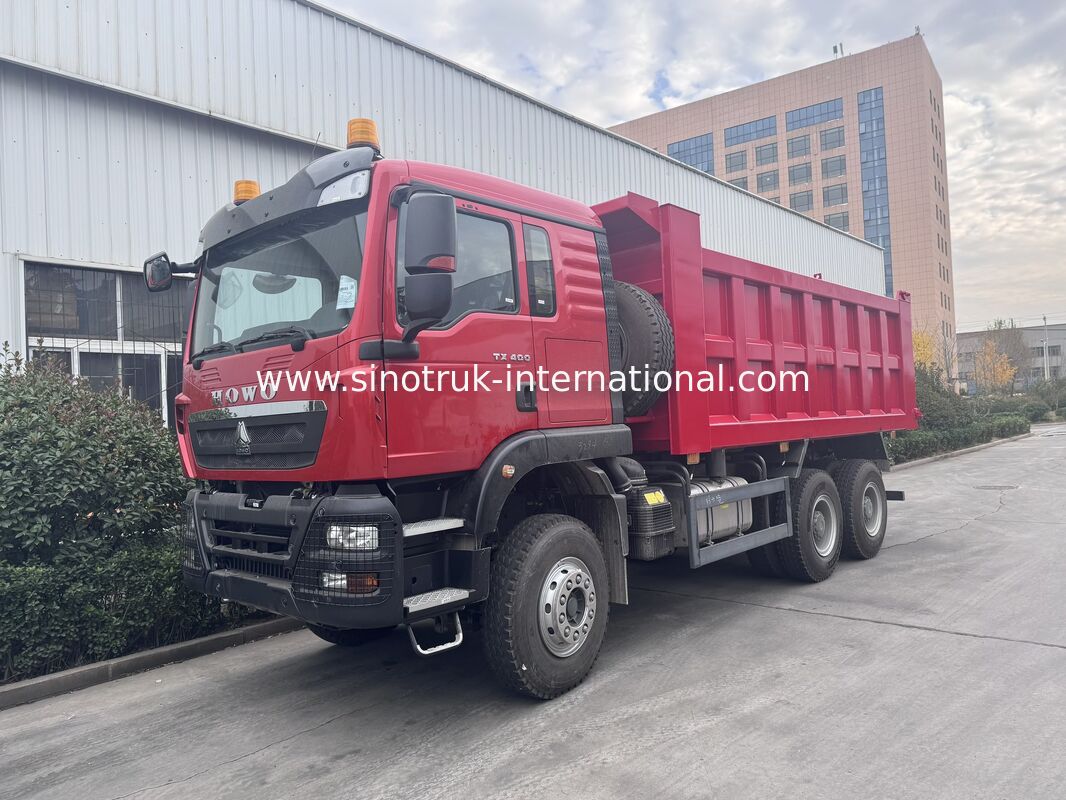

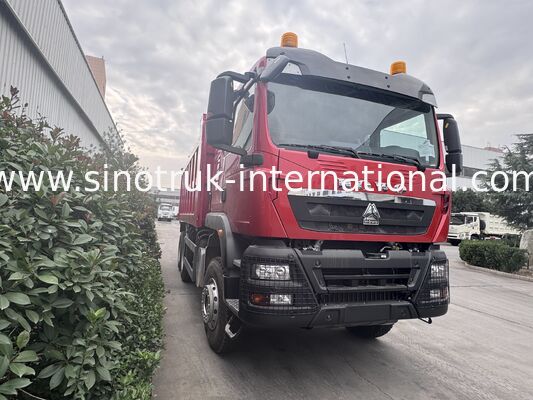

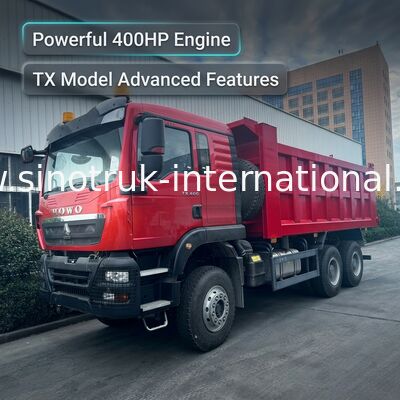

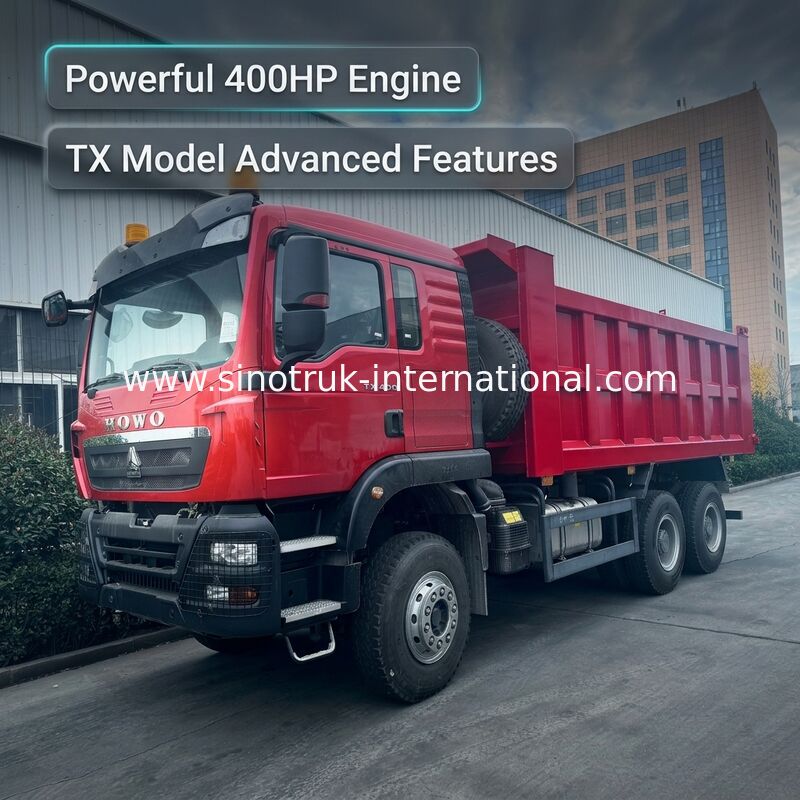

SINOTRUK HOWO TX Model 400HP LHD Tipper Dump Truck 6X4 With Warning lights

SINOTRUK HOWO TX Model 400HP LHD Tipper Dump Truck 6X4 With Warning lights

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: SINOTRUK
إصدار الشهادات: ISO/3C/BV/IFA/SGS
رقم الموديل: ZZ3257V384JB1
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 وحدة
الأسعار: قابل للتفاوض
تفاصيل التغليف: الشمع في السفينة السائبة ، سفينة رورو ، حاوية
وقت التسليم: 10-30 أيام العمل
القدرة على العرض: 3000 وحدة شهريا
اتصل
مفصلة وصف المنتج
اسم المنتج: شاحنة القمامة نموذج: ZZ3257V384JB1
نوع محرك الأقراص: دكتوراه في العلوم الإنسانية 6 × 4 الكابينة: H77L مع واحد نائم ، A/C
محرك: WP10.380E22 380HP الانتقال: HW19710 (10 مهاجمون و 2 انعكاس)
إبراز:

400HP tipper dump truck,LHD HOWO TX dump truck,6X4 dump truck with warning lights

,

LHD HOWO TX dump truck

,

6X4 dump truck with warning lights

SINOTRUK HOWO TX Model 400HP LHD Tipper Dump Truck 6X4 With Warning lights


Description:

Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons LHD 6X4 for Construction

This type product , with features of reliable structure , high loading capacity which can load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.


This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.




Specifications:



SINOTRUK HOWO 6x4 LHD Heavy Tipper Dump Trucks 380HP
Model ZZ3257V384GB1
Drive Type 6×4
Engine
WD12S400E201    400HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin TX-F(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2XMCX16ZG, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8550×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12100(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:


working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.


Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
