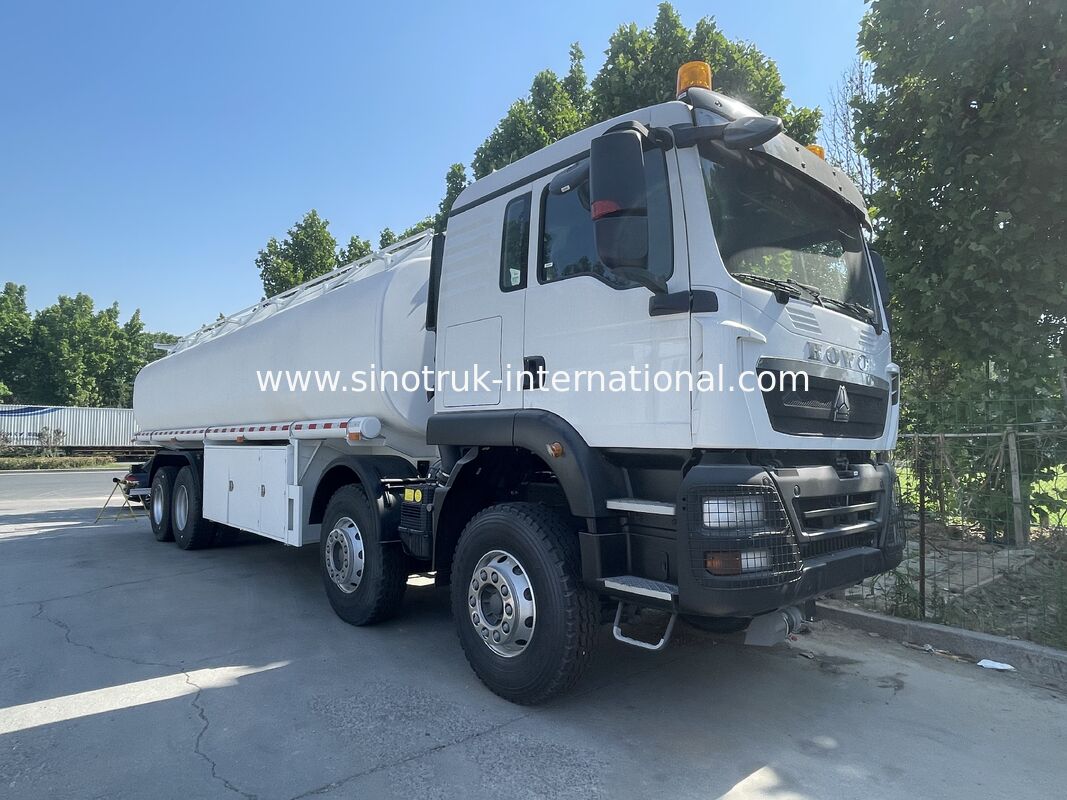

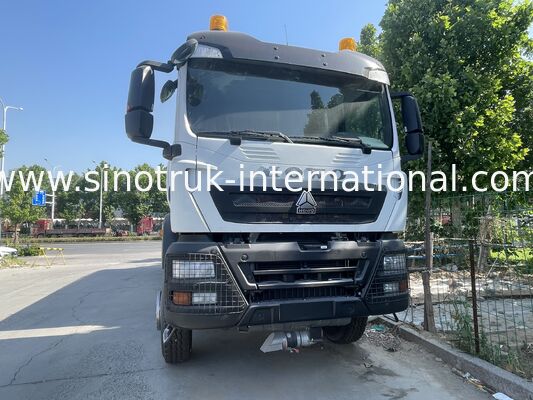

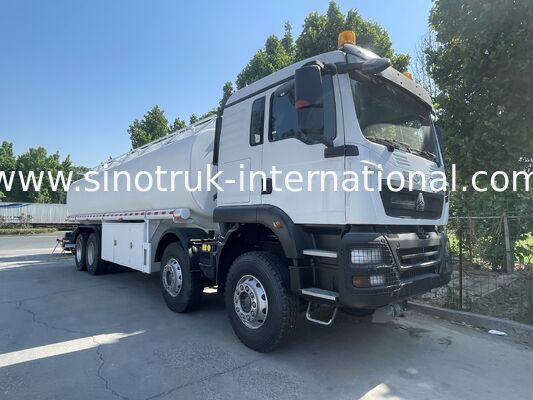

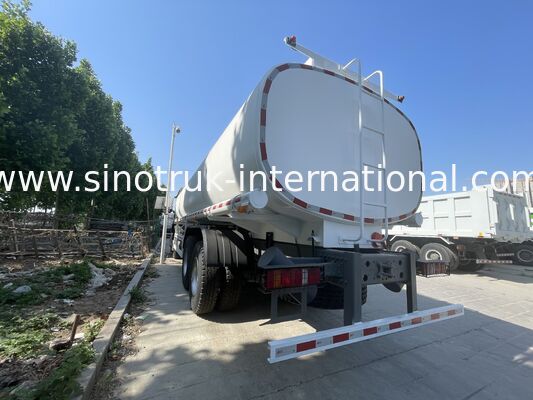

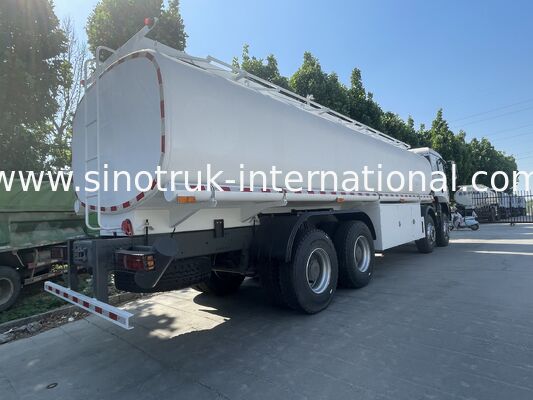

HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun

HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun

  • HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun
  • HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun
  • HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun
  • HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun
HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: SINOTRUK HOWO
إصدار الشهادات: ISO/3C/BV/IFA/SGS
رقم الموديل: ZZ1317N466GB1
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 وحدة
الأسعار: USD46000-USD46500/UNIT)negotiation
تفاصيل التغليف: عارية أو شمع في رورو أو سفينة كبيرة
وقت التسليم: 25 يوم عمل بعد استلام دفعة مقدمة
شروط الدفع: ل / c، / تي تي، ويسترن يونيون
القدرة على العرض: 2000 وحدة في الشهر
اتصل
مفصلة وصف المنتج
اسم المنتج: شاحنة خزان الزيت نموذج: ZZ1317N466GB1
نوع محرك الأقراص: LHD 8x4 معيار الانبعاثات: يورو 2
محرك: WD615.47 ، 371 حصان سعة جسم الخزان: 25-35CBM
إبراز:

HOWO 8X4 oil tank truck

,

35CBM fuel delivery truck

,

petroleum storage truck with warning lights

HOWO 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 35CBM Two Warning Lights With pipe gun


Description:


HOWO Stainless Steel 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 30 CBM

Tanker trucks are also known as mobile fuel trucks, tanker trucks, tanker trucks, tanker trucks, tanker trucks, tanker trucks, edible oil carriers, mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, lubricating oil and coal tar oil).


Depending on the different gas or oil, and the different environment, the pump uses a variety of oils

Aluminum foil equipment, put function. The special part of the tank consists of the oil tank, the PTO, the drive shaft, the gear pump,

Piping system components. The piping system consists of oil pump, three-way four-ball valve,

Two way valve. Filter tube.


Specification:


HOWO Stainless Steel 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 30 CBM

Chassis Model

ZZ1317N466GB1

Drive Type

8×4

Engine

WD615.47, 371HP

Cabin

TX-F cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

VGD95(2X9.5 Tons)

Driving Axle

MCX16(2X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

1800+4600+1350(mm)

Capacity of tank body

25-35CBM

Thickness of tank body

5mm,With 6cabin

Basic setup

Gear oil pump, flow meter, flash hider, fire extinguisher

Overall dimension

11894×2500×3550mm

The curb weight

12300(Kg)

Gross weight

31000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:


The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage.


Competitive Advantage:


1) A variety of styles. A variety of truck models can meet your needs
2) High quality. Key components use the world's top technology products
3) Good technique. Based on strong technical support and top technology to make the truck with high quality and high quality

More reliable

4) Security and stability. The tank cars produced by our company adopt advanced butt welding technology and are processed and formed

Detect the leakage of high-pressure gas in the tank. The tank has high strength, stable center of gravity,

Safe and stable vehicle characteristics;

5) Shot blasting pretreatment process is adopted after welding of the tank body. Advanced baking technology is adopted for rust prevention and paint baking, which is durable and beautiful in appearance. Independent subposition,

6) Divided into different oil products, chemical, food, such as liquid food truck, chemical liquid food truck,

Insulated liquid transport vehicle, dangerous goods transport vehicle, asphalt transport vehicle

7) The outside of the tank is sandblasted, the inside is treated with anti-corrosion, and the outside surface is made of advanced polyurethane coating, which is beautiful in appearance

8) Front and rear high jet optional, water jet diffusion function, 360 degrees rotation,

150 degrees up and down. Optional small flow pump, spray wheel wake up garden trees to kill insects

Flowers and plants

9) Competitive price, cost-effective
10) Fast and efficient spare parts supply, to bring you more convenient

11) Fast delivery time, we can accurately and quickly arrange production according to your needs

12) Professional import and export transaction process makes customs clearance more efficient
