Place of Origin: | China |
اسم العلامة التجارية: | SINOTRUK HOWO A7 |
إصدار الشهادات: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3847N1 |
Minimum Order Quantity: | 1 Unit |
---|---|
الأسعار: | USD38000-USD42000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847N1 |
---|---|---|---|
Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.69, 336HP | Cargo body: | 5800*2300*1500mm |
Loading capacity: | 30-40tons | Cabin: | A7-W |
Thickness of cargo body: | Bottom: 16mm Side:12mm | Hydraulic system: | China brand |
إبراز: | heavy dump truck,sinotruk howo dump truck,sinotruk howo dump truck |

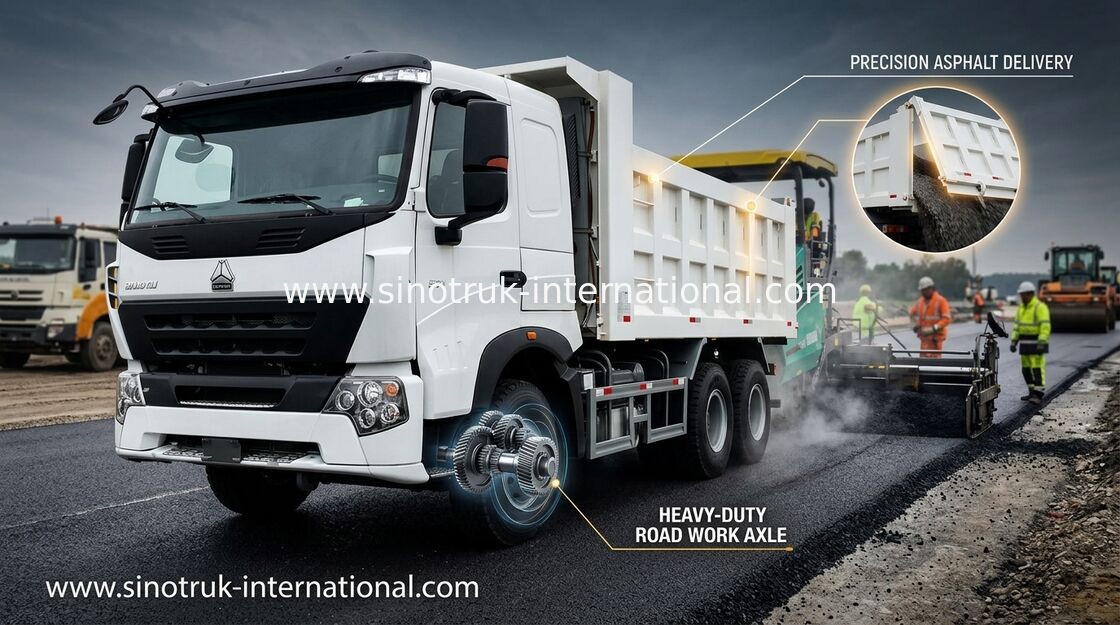

SINOTRUK HOWO A7 Dump Truck LHD 6x4 White color 30 - 40tons for Mining business
Description:
SMARTSHIFT-AMT intelligent shift hand self integrated transmission
SMARTSHIFT literally translated as "clever shift".AMT is one of the world's high-end heavy truck standard technology, Europe 50% trucks equipped with AMT gearbox. China launched heavy truck SMARTSHIFT-AMT make Chinese users can also enjoy international high-end heavy truck operator comfort, which will Chinese heavy truck up to the world advanced technology of heavy truck Chinese (Asia leading ranks! Heavy truck into the automatic shift times.)
China heavy truck SMARTSHIFT transmission is 16 speed control, automatic transmission, like a highly skilled driver driving a truck, with higher fuel efficiency.
AMT working principle and structure is completely different from the car AT. car with AT through the turbine driven hydraulic oil, hydraulic oil to drive the mechanical device model, the efficiency of large losses in oil driven, it is generally more than one hundred kilometers 1-2 liters of fuel consumption of a manual transmission.AMT mechanical gearbox by electronic control automatic shifting, the shift also like a manual transmission, to speed up the separation of the clutch through the engine or transmission braking, meshed synchronization, automatic switching of the most appropriate gear, generally more fuel-efficient 3%-5%. manual box
Applicable to all kinds of conditions. The use of China SMARTSHIFT heavy truck, the driver can concentrate on driving and the surrounding traffic environment, timely response. Help the new driver to advanced driver level. The driver can still switch to manual. The manual shift mode, use the control handle to select proper position. The application of SMARTSHIFT truck without clutch the pedal shift is fully automatic.
High reliability. All AMT hardware in Europe for many years and mature. The use of heavy truck
Specifications:
SINOTRUK HOWO A7 Dump Truck LHD 6x4 White color 30 - 40tons for Mining business | ||||
Model | ZZ3257N3847N1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8575×2496×3450(mm) | |||
Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12300(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)fast delivery time, we can arange production according to your needs exactly and
quickly
2) professional import and export dealing precedure, make customs clearance more high efficiency
3)competive price, cost-effective
4)quick and efficient spare parts supply bring you more convenient
5)low fuel consumption
6) strong enough engine
7)Optimized cargo body structure,light weight,high rigidity,large loading capacity
8)Using the high strength steel,it has long service life
9)Optimized the sealing structure has the better sealing effect.
10)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
11)Multiple box structures and device selections
12)with all kinds of truck model, which can fulfil your requirement
13)the key parts adopt the world's top technology products
14)based on strong technical support and top level technology make the trucks with high
quality and more reliable
