Place of Origin: | China |
اسم العلامة التجارية: | SINOTRUK HOWO |
إصدار الشهادات: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3447A1 |
Minimum Order Quantity: | 1 Unit |
---|---|
الأسعار: | USD38000-USD42000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3257N3447A1 |
---|---|---|---|
Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.87, 290HP | Cargo body: | 5400*2300*1500mm |
Loading capacity: | 30-40tons | Lfiting type: | Middle hydraulic cylinder |
Thickness of cargo body: | bottom:8mm, side: 6mm | Transmission: | HW15710 |
إبراز: | sinotruk howo dump truck,commercial dump truck,commercial dump truck |

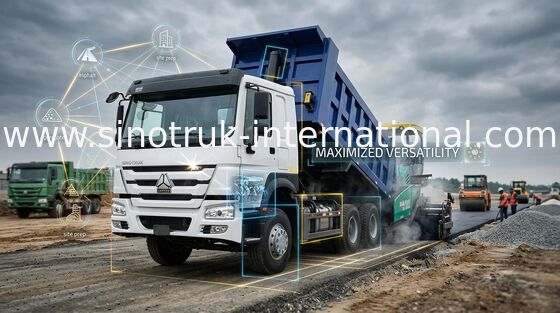

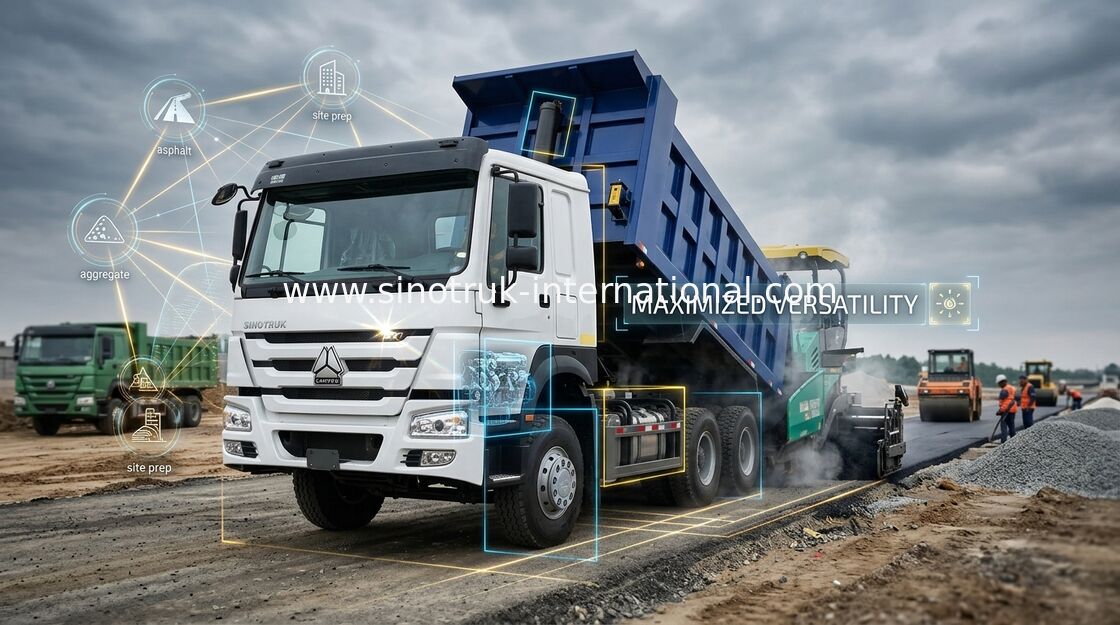

SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting
Description:
SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting
From design concept to configuration, from the atmosphere to beautiful and practical and reliable, from the economy to the safety, comfortable, convenient, China's newly launched HOWO-7 heavy truck reflects the product development strategy China's one step ahead. As the crystal China heavy truck "technology leading strategy", HOWO-7 has not only become the pinnacle of domestic heavy truck also, will lead the China heavy truck industry to quickly advanced level in the world
As the positioning in the high-end heavy truck, safety performance can not be ignored. HOWO with ABS "front disc and drum" configuration, the vehicle stability to achieve the standard USB brake is one of the world's most high-end heavy truck, compared with drum brake which has a high speed, heavy load and high temperature characteristics when the braking efficiency is good. When the vehicle speed. To 80km/h, in the end I got test track unhurried on the brake pedal, the body is not under the strong inertial force obviously did not have a front brake head and braking deviation phenomenon, but in a slow, gentle attitude slow forward.
Specification:
SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting | ||||
Model | ZZ3257N3447A1 | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW15710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3400+1350(mm) | |||
Overall dimension | 8175×2496×3450(mm) | |||
Cargo body |
5400×2300×1500(mm),Bottom:8mm, Side:6mm |
|||
The curb weight | 12200(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) competive price, cost-effective
2) reliable quality
3) good after slaes service, which can send engineers for traning and maintainance
4) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
5) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
6) low fuel consumption
7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements
9) using the high strength steel, make it has a long service life
10) fast delivery time, we can arange production according to your needs exactly and quickly
11) professional import and export dealing precedure, make customs clearance more high efficiency
12) excellant apperance of cabin, safety, reliable
13) quick and efficient spare parts supply bring you more convenient
14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
15) The hydraulic sytem using HYVA brand or Domestic famouse brand
