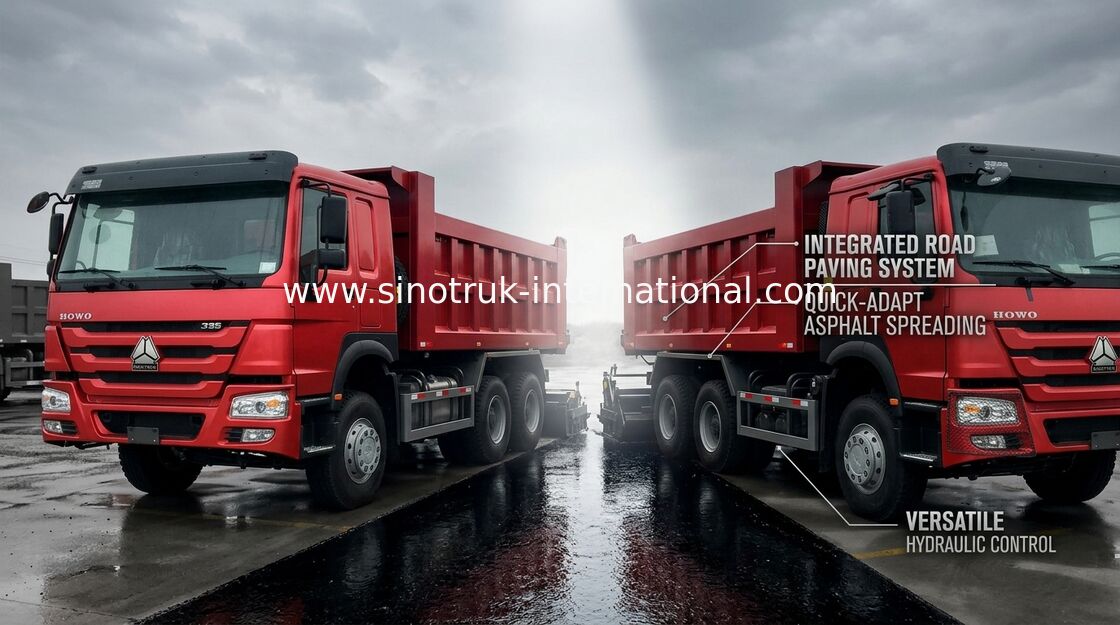

Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green

Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green

  • Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green
  • Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green
  • Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green
  • Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green
Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: SINOTRUK HOWO
إصدار الشهادات: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3247W
شروط الدفع والشحن:
Minimum Order Quantity: 1 Unit
الأسعار: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
اتصل
مفصلة وصف المنتج
Product Name: Tipper Dump Truck Model: ZZ3257N3247W
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5200*2300*1500mm
Loading capacity: 30-40tons Lfiting type: T type Middle hydraulic cylinder
Thickness of cargo body: bottom:8mm, side: 6mm Transmission: HW19710
تسليط الضوء:

sinotruk howo dump truck,commercial dump truck

,

commercial dump truck

Dump Truck SINOTRUK HOWO 336HP 6X4 RHD 20CBM 30ton Front lifting Mininig industry



Description:



Dump Truck SINOTRUK HOWO 336HP 6X4 RHD 20CBM 30ton Front lifting Mininig industry

The afternoon of April 27, 2010, the first batch of 500 vehicles China heavy truck tractor HOWO

shipment sent to Venezuela Cabello at the port of Qingdao port group company of Dagang Port. The delivery ceremony held at the same time in port, Chinese Zhongqi Import & Export Company department chief representative of Asian American Wang Yingbo will hand over the car keys to the car. The representative of Venezuela with hands exported to Venezuela project started Chinese heavy large trucks exported to Venezuela precedent.



Watching a HOWOA7 tractor through a springboard into the ship, pick up the car on behalf of Venezuela is very excited, he said in an interview with Shandong TV: China heavy truck of good quality, cost-effective, and timely service, we look forward to further cooperation with Chinese heavy truck.

Chinese Zhongqi and Venezuelan National Oil Co signed a 750 tank semi-trailer and 750 vehicles 6X4 HOWO-A7 tractor export contracts, the first batch of 500 tractor on the afternoon of April 27, 2010 to start loading, loading all completed on April 28, 2010 at 5:20 in the morning, is expected to May 20, 2010 arrived in Venezuela.



This load is strongly supported by Qingdao port group company of Dagang Dagang company, for the shipment successfully done a lot of work. China heavy truck and the Qingdao Port Group signed a strategic cooperation agreement in 2008 April, by the end of April 2009, the cumulative China heavy truck transmission vehicle more than 5600 vehicles.







Specification:



Dump Truck SINOTRUK HOWO 336HP 6X4 RHD 20CBM 30ton Front lifting Mininig industry
Model ZZ3257N3247W
Drive Type 6×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

operating with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3200+1350(mm)
Overall dimension 8075×2496×3450(mm)
Cargo body

5200×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1) competive price, cost-effective

2) reliable quality

3) good after slaes service, which can send engineers for traning and maintainance

4) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

5) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

6) low fuel consumption

7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements

9) using the high strength steel, make it has a long service life

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) professional import and export dealing precedure, make customs clearance more high efficiency

12) excellant apperance of cabin, safety, reliable

13) quick and efficient spare parts supply bring you more convenient

14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

15) The hydraulic sytem using HYVA brand or Domestic famouse brand



Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green 0Mining Industry Sinotruk Howo Dump Truck 336HP 6X4 RHD 30 Ton White / Red / Green 1
